Gravograph™ Galvo Laser Workstation Machines
Galvonometric lasers are available with all Gravograph laser technologies: Fiber, Hybrid, Green, and CO2. They meet all your needs in traceability and identification marking. Utilizing a fixed laser position, galvo lasers are capable of amazing speed and accuracy.
The compact size and professional quality of our Laser Workstation range means they provide the ideal solution for laser marking beyond the production line.
A number of versions are available depending on your needs and applications. These range from the most straightforward and economical systems to the those with highly specialized features and even a semi-automatic station.
Advantages:
- Multiple Laser Technologies: Available with Gravograph's complete laser technology: Fiber, DPSS, Green, or CO2
- Compact and Silent: The ideal solution for quick identification of parts in a small to medium-sized production run.
- Reliability: A combination of Gravotech's expertise and high quality.
CO2 Laser
CO2 lasers are the most common type of laser engravers currently on the market. They are fast, quiet and work with a wide range of organic and man-made materials.
Fiber Laser
Utilizing fiber optics to stimulate the laser, this long lasting laser source has a low maintenance cost over the life of the machine. Higher than average power allows text & graphics to be applied faster. Great for engraving metal.
Hybrid Laser
Combining the unique power of a YVO4 and a diode pumped solid state source, the Hybrid provides contrasted marking on a range of materials with the best reaction occurring with metals and plastics.
Green Laser
Utilizing a 532nm wavelength, the Green laser features a new type of marking, "cold marking". Minimal heat is applied to the material reducing the mechanical stress & distortion to parts.
Two Models Available:

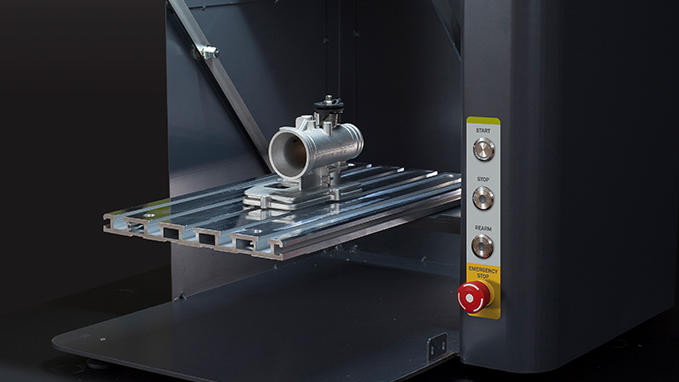

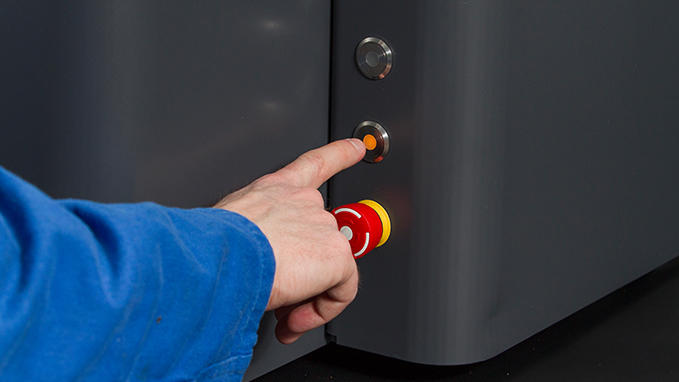

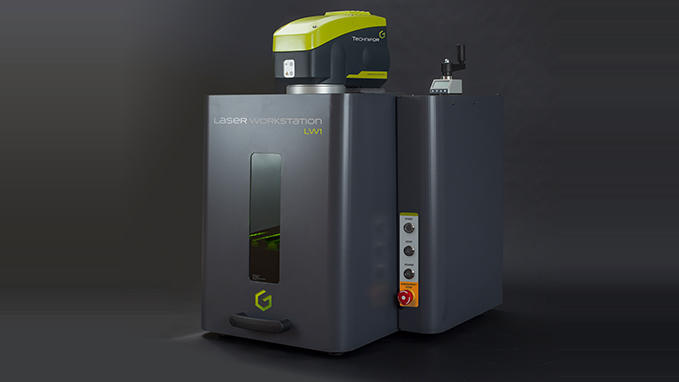

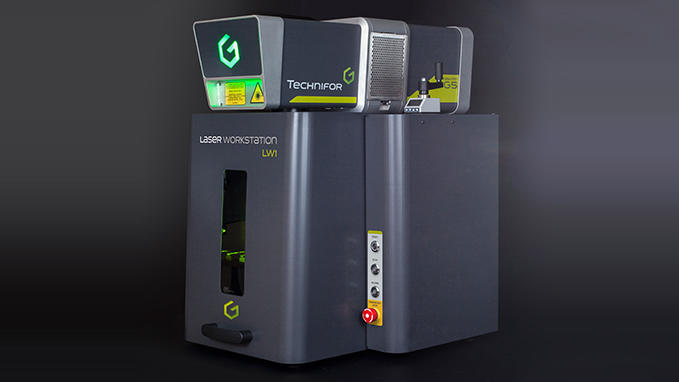

Laser Workstation 1 (LW1) - Manual Control
The Laser Workstation 1 is a simple and economical laser marking station. It can be safely installed in an office environment or on a workbench.
Technical Specifications
| Glavo LW1 | |
|---|---|
| Laser Tech: | CO2, Fiber, Hybrid, or Green |
| Max Part Size: | 11.18 x 21.22 inches |
| Max Engraving Size: | 8.07 x 8.07 inches |
| Machine Size: | 25.6 x 59.2 x 21.6 inches |
| Machine Weight: | 110 lbs + Laser |

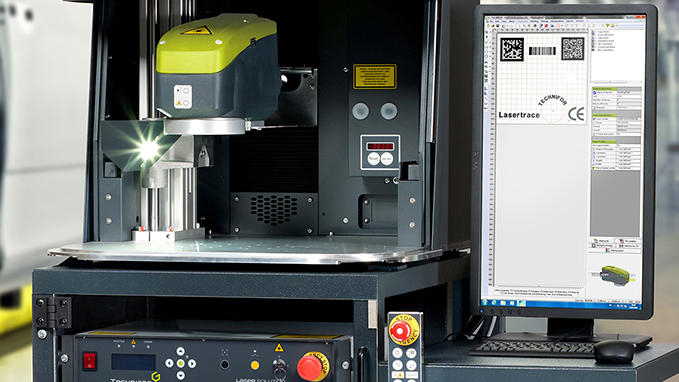

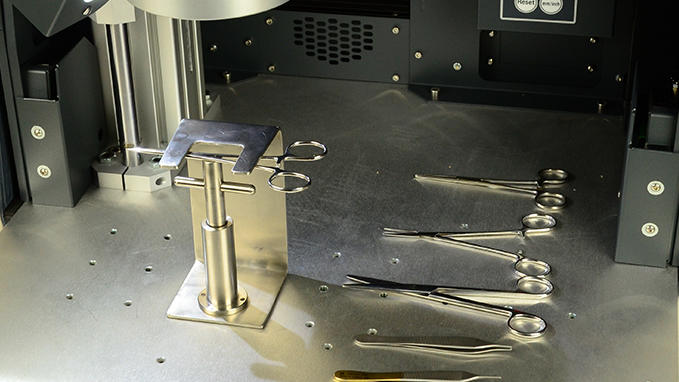

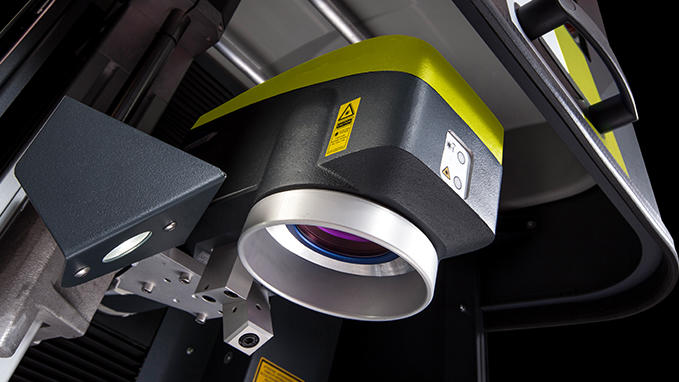

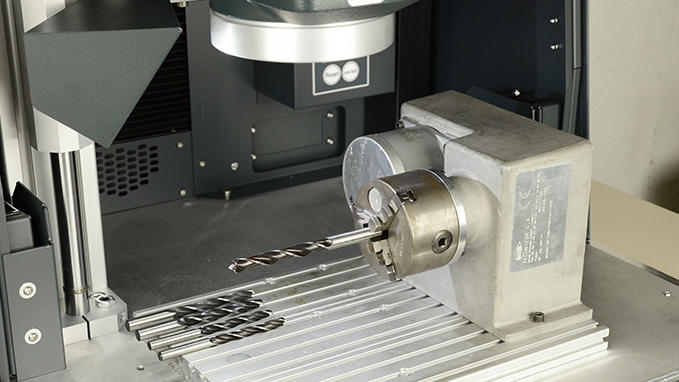

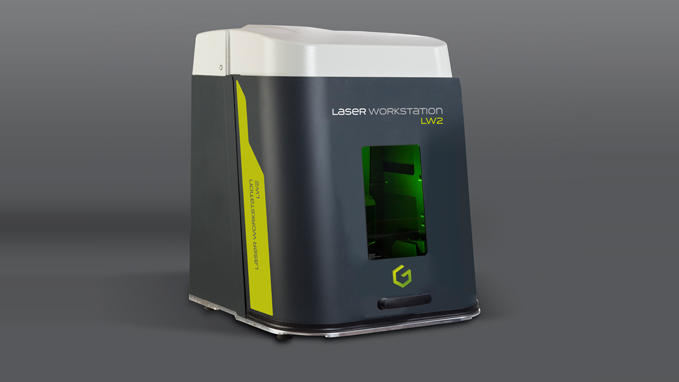

Laser Workstation 2 (LW2) - Automated Control
The LW2 marking station laser marks all types of data: series numbers, 2D Data Matrix code, references, logos, etc.
It is ideal for identifying your parts in small to medium production runs and for boosting your productivity.
Technical Specifications
| Glavo LW2 | |
|---|---|
| Laser Tech: | CO2, Fiber, Hybrid, or Green |
| Max Part Size: | 14.37 x 21.96 inches |
| Max Engraving Size: | 8.07 x 8.07 inches |
| Machine Size: | 23.75 x 24.5 x 30.5 inches |
| Machine Weight: | 132 lbs + Laser |
